Documenting and Publishing your Data

Lesson 10 with Rachael Blake

Lesson Objectives

Specific Achievements

What is a data package?

A data package is a collection of files that describe your data.

There are two essential parts to a data package: data and metadata.

Data packages also frequently include 1) code scripts that clean, process, or perform statistical anslyses on your data, and 2) visualizations that are direct products of coded anlyses. The relationships between these files are described in the provenance information for a data package. We will get into more details on these components in this lesson.

Why package and publish your data?

  1. Data is a valuable asset - easily publish your data now or in the future

  2. Efficient collaboration - improve sharing data with collaborators now

  1. Credit for your work

  2. Funder requirement

  3. Publisher requirement

  4. Open, Reproducible Science

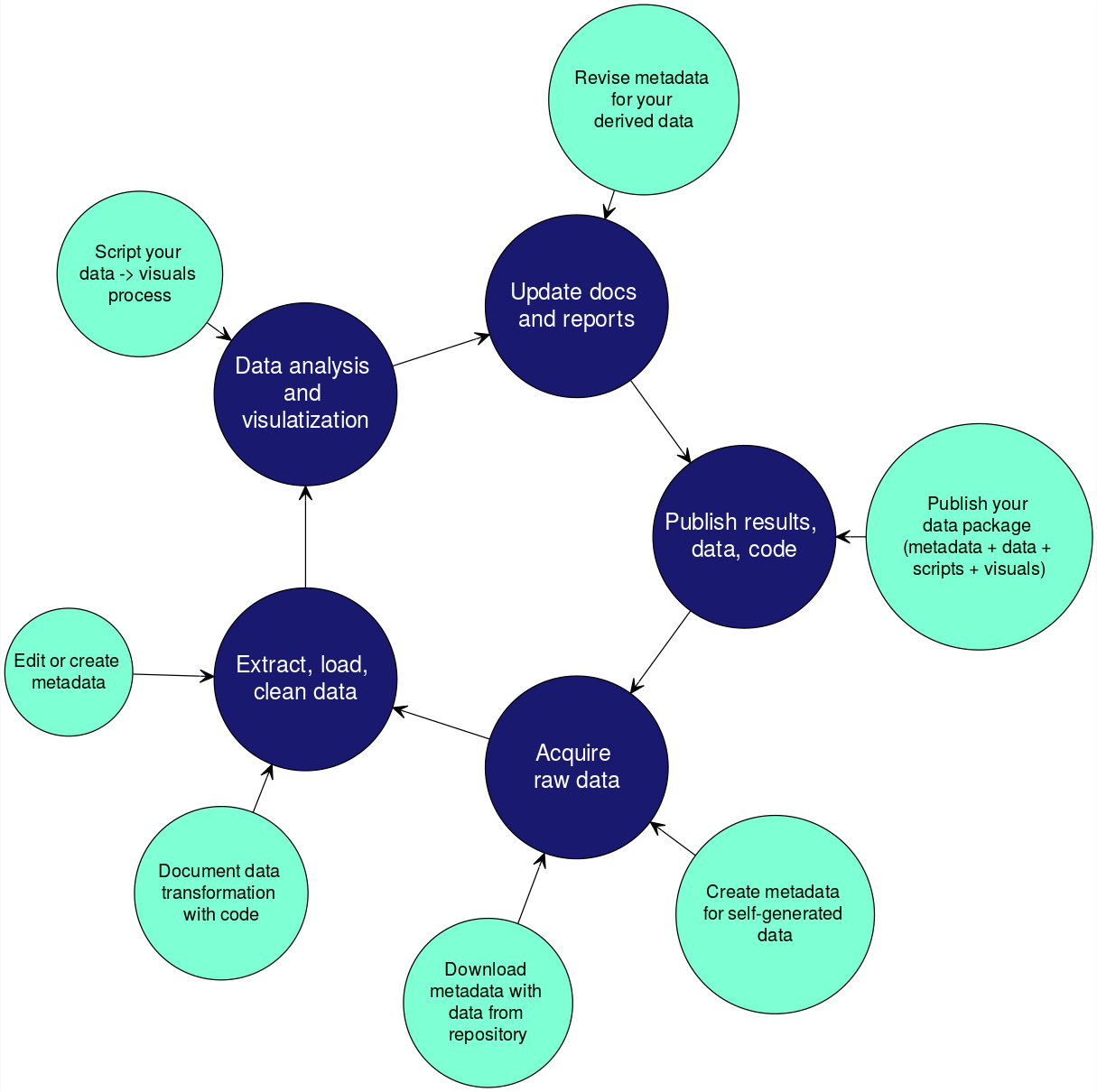

Integrating data documentation

It is important to incorporate documentation of your data throughout your reproducible research pipeline.

Top of Section

Preparing Data for Publication

Both raw data and derived data (data you’ve assembled or processed in some way) from a project need to be neat and tidy before publication. Following principles of tidy data from the beginning will make your workflows more efficient during a project, and will make it easier for others to undertand and use your data once published. However, if your data isn’t yet tidy, you can make it tidier before you publish it.

Consistency is key when managing your data!

  1. At a minimum, use the same terms to refer to the same things throughout your data.

    • “origin”, not “starting place”, “beginning location”, and “source”
    • “Orcinus orca”, not “killer Whale”, “Killer whale”, “killer.whale”, and “orca”

  2. Consider using a discipline-wide published vocabulary if appropriate (ex: hydrological controlled vocab.)

Naming data files

Bad: “CeNsus data*2ndTry 2/15/2017.csv”

Good: “census_data.csv”

library(tidyverse)

stm_dat <- read_csv("data/StormEvents.csv")

Formatting data

  1. One table/file for each type of observation.
  2. Each variable has its own column.
  3. Each observation has its own row.
  4. Each value has its own cell.

Downstream operations/analysis require tidy data.

These principles closely map to best practices for “normalization” in database design. R developer Hadley Wickham further describes the priciples of tidy data in this paper (Wickham 2014).

You can work towards ready-to-analyze data incrementally, documenting the intermediate data and cleaning steps you took in your scripts. This can be a powerful accelerator for your analysis both now and in the future.

Let’s do a few checks to see if our data is tidy.

> head(stm_dat)
> tail(stm_dat)

> str(stm_dat)

> unique(stm_dat$EVENT_NARRATIVE)

Outputting derived data

Because we followed the principle of one table/file for each type of observation, we have one table to be written out to a file now.

dir.create('storm_project', showWarnings = FALSE)
write_csv(stm_dat, "storm_project/StormEvents_d2006.csv")

Versioning your derived data

Issue: Making sure you and your collaborators are using the same version of a dataset

One solution: version your data in a repository (more on this later)

Top of Section

What is Metadata?

Metadata is the information needed for someone else to understand and use your data. It is the Who, What, When, Where, Why, and How about your data.

This includes package-level and file-level metadata.

Common components of metadata

Package-level:

File-level:

Metadata Standards

The goal is to have a machine and human readable description of your data.

Metadata standards create a structural expression of metadata necessary to document a data set.
This can mean using a controlled set of descriptors for your data specified by the standard.

Without metadata standards, your digital data may be irretrievable, unidentifiable or unusable. Metadata standards contain definitions of the data elements and standardised ways of representing them in digital formats such as databases and XML (eXtensible Markup Language).

These standards ensure consistent structure that facilitates data sharing and searching, record provenance and technical processes, and manage access permissions. Recording metadata in digital formats such as XML ensures effective machine searches through consistent sturctured data entry, and thesauri using controlled vocabularies.

Metadata standards are often developed by user communities.

For example, EML was developed by ecologists to describe environmental and ecological data.

Therefore, the standards can vary between disciplines and types of data.

Some examples include:

Creating metadata

Employer-specific mandated methods (ex: USGS)

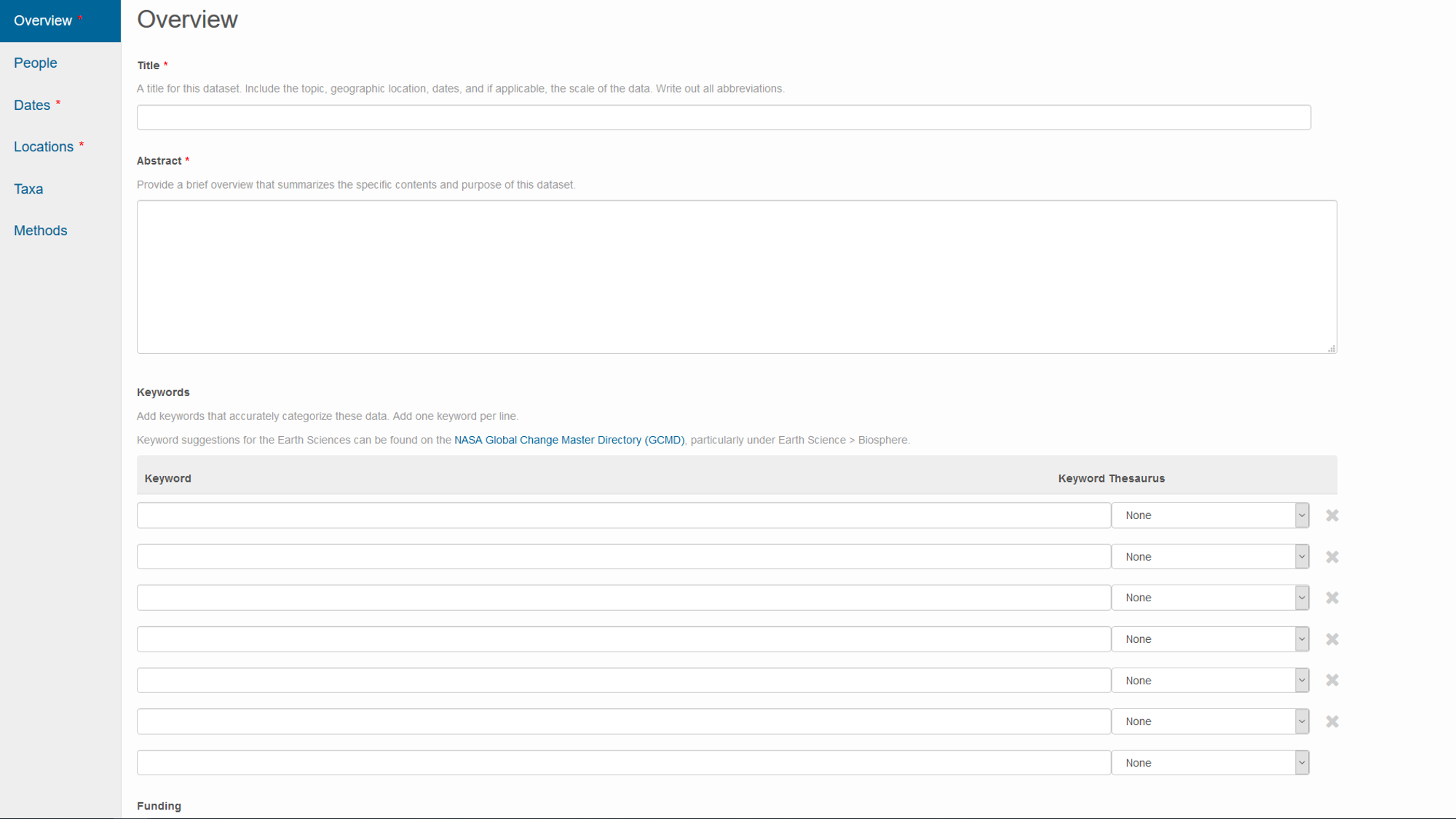

Repository-specific methods

Repository websites frequently guide you through metadata creation during the process of uploading your data.

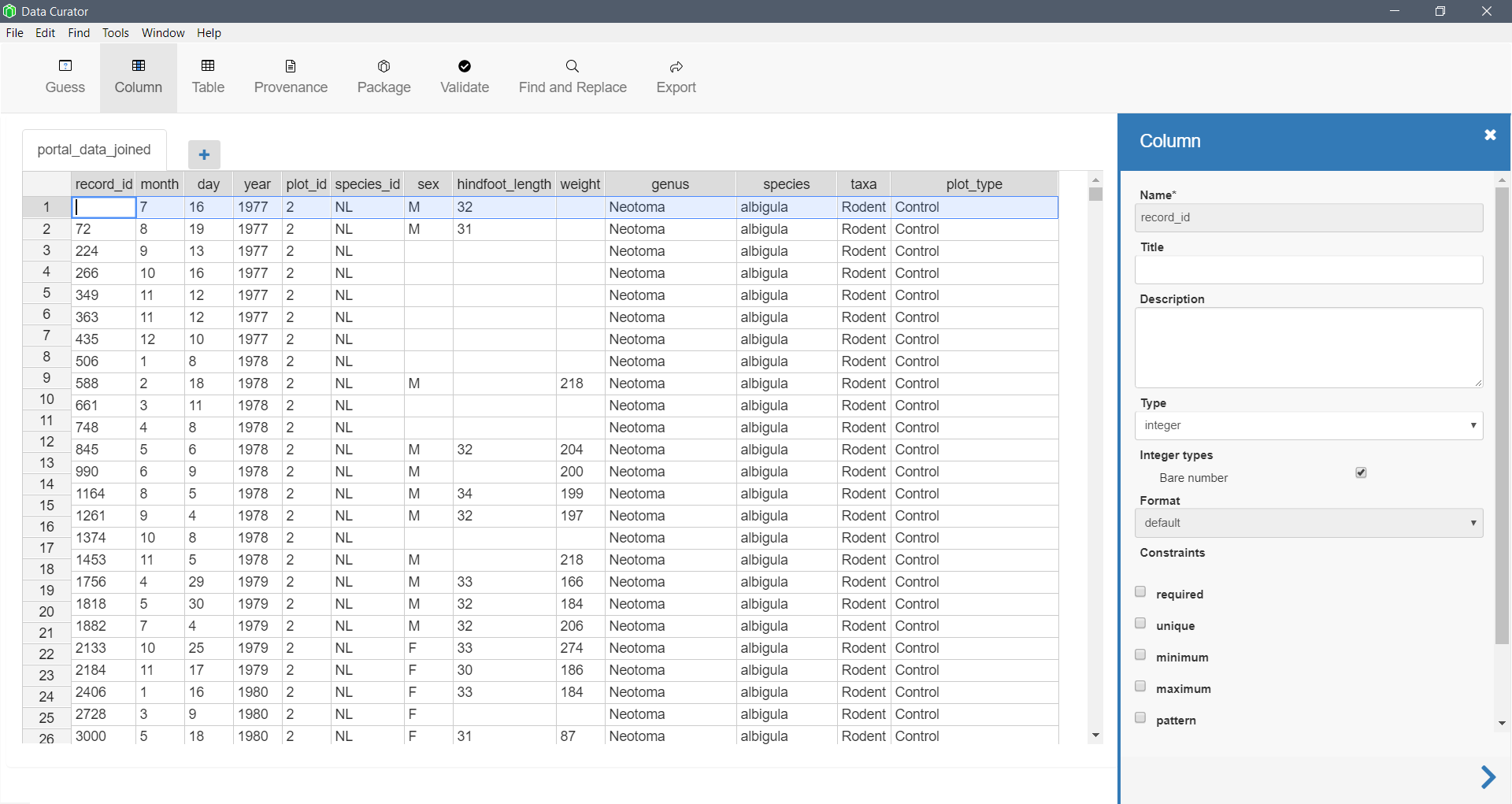

Stand-alone software

Software designed for data curation often has more features and options. This software from the Queensland Cyber Infratstructure Foundation supports metadata creation, provenance, and data packaging.

Coding

Many methods for documenting and packaging data are also available in R packages developed by repository managers. For example, EMLassemblyline was developed by the Environmental Data Initiative to facilitate documenting data in EML, and preparing data for publication.

Example of coding up some metadata

R Package What does it do?
dataspice creates metadata files in json-ld format
emld aids conversion of metadata files between EML and json-ld
EML creates EML metadata files
jsonlite reads json and json-ld file formats in R

We’ll use the dataspice package to create metadata in the EML metadata standard.

library(dataspice)

Create data package templates.

create_spice(dir = "storm_project")

Look at your storm_project folder, and see the CSV template files.

Describe the package-level metadata.

The templates are empty, so now we need to populate them. Add extent, coverage, license, publication, funder, keywords, etc.

We can get the temporal and geographic extent information using the range() function.

> range(stm_dat$YEAR)
>
> range(stm_dat$BEGIN_LAT, na.rm=TRUE)
> range(stm_dat$BEGIN_LON, na.rm=TRUE)

This extent information can now be added to the biblio.csv metadata file.

This function opens a Shiny app interface where you can enter and save information in the CSV templates. You could also edit these CSV files in another software program.

edit_biblio(metadata_dir = "storm_project/metadata")

You may need to click the stop sign in your console to stop the edit Shiny app interface.

Describe the creators of the data.

edit_creators(metadata_dir = "storm_project/metadata")

You may need to click the stop sign in your console to stop the edit Shiny app interface.

The prep_access() function tries to discover the metadata for itself.

prep_access(data_path = "storm_project",
            access_path = "storm_project/metadata/access.csv")

The edit_access() function can be used to edit the generated metadata, or used by itself to manually enter access metadata. Supply the file name and other access information about the data.

edit_access(metadata_dir = "storm_project/metadata")

Describe the file-level metadata.

The prep_attributes() function tries also to discover the metadata for itself.

prep_attributes(data_path = "storm_project",
                attributes_path = "storm_project/metadata/attributes.csv")

The edit_attributes() function can be used to further edit the file attribute metadata.

edit_attributes(metadata_dir = "storm_project/metadata")

Write metadata file

Now we can write our metadata to a json-ld file.

write_spice(path = "storm_project/metadata")

You can also create a static website for your dataset.

build_site(path = "storm_project/metadata/dataspice.json")

Your site will build to the location “docs/index.html”.

Many repositories use EML (Ecological Metadata Language) formatting for metadata.
Now convert the json-ld file into EML format.

library(emld)
library(EML)
library(jsonlite)

json <- read_json("storm_project/metadata/dataspice.json")
eml <- as_emld(json)
write_eml(eml, "storm_project/metadata/dataspice.xml")

Top of Section

Publishing your data

Choosing to publish your data in a long-term repository can:

Why can’t I just put my data on Dropbox, Google Drive, my website, etc?

Key reasons to use a repository:

When to publish your data?

Near the beginning? At the very end?

A couple issues to think about:

1) How do you know you’re using the same version of a file as your collaborator?

2) How do you control access to your data until you’re ready to go public with it?

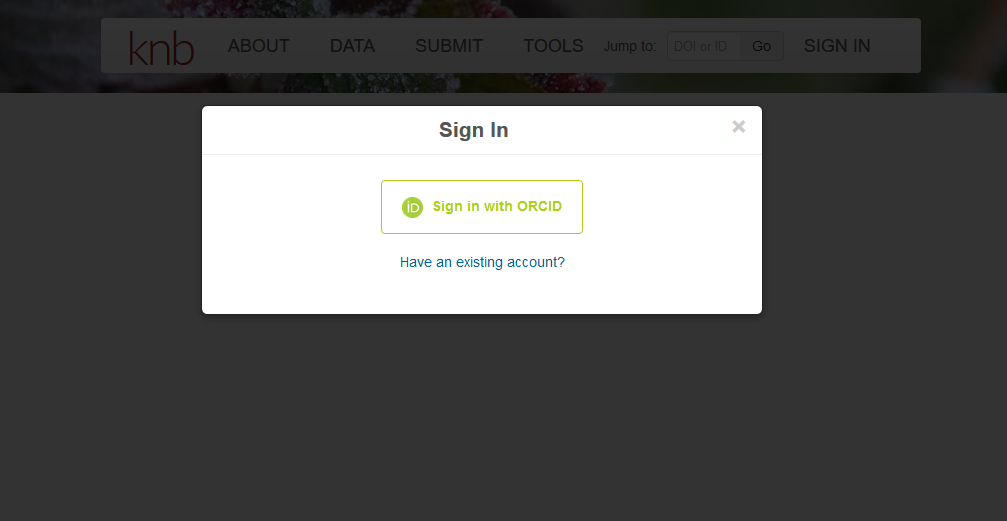

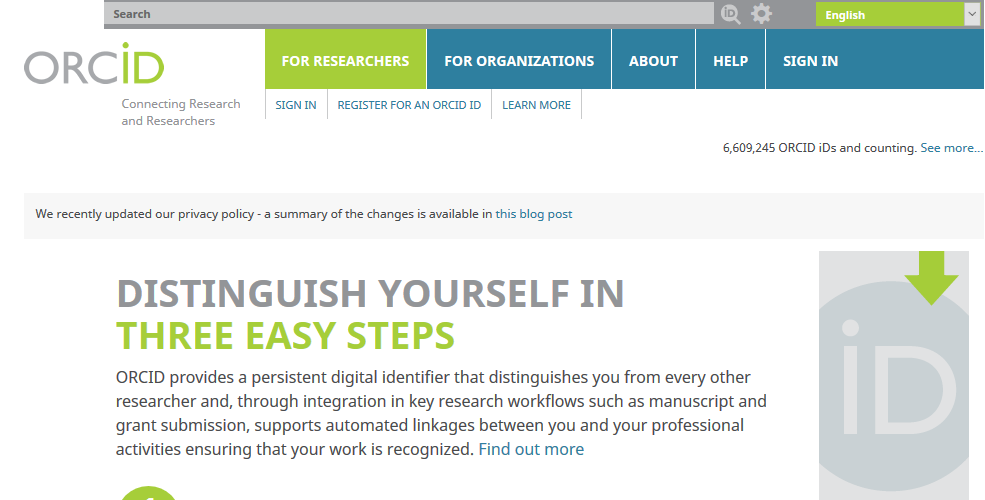

Get an ORCiD

ORCiDs identify you and link you to your publications and research products. They are used by journals, repositories, etc. and often as a log in.

To obtain an ORCiD, register at https://orcid.org.

Creating a data package

Data packages can include metadata, data, and script files, as well as descriptions of the relationships between those files.

Currently there are a few ways to make a data package:

We’ll follow the DataONE way of creating a data package in this lesson.

R Package What does it do?
datapack creates data package including file relationships
uuid creates a unique identifier for your metadata

We’ll create a local data package using datapack:

library(datapack)
library(uuid)

dp <- new("DataPackage") # create empty data package

Add the metadata file we created earlier to the blank data package.

emlFile <- "storm_project/metadata/dataspice.xml"
emlId <- paste("urn:uuid:", UUIDgenerate(), sep = "")

mdObj <- new("DataObject", id = emlId, format = "eml://ecoinformatics.org/eml-2.1.1", file = emlFile)

dp <- addMember(dp, mdObj)  # add metadata file to data package

Add the data file we saved earlier to the data package.

datafile <- "storm_project/StormEvents_d2006.csv"
dataId <- paste("urn:uuid:", UUIDgenerate(), sep = "")

dataObj <- new("DataObject", id = dataId, format = "text/csv", filename = datafile)

dp <- addMember(dp, dataObj) # add data file to data package

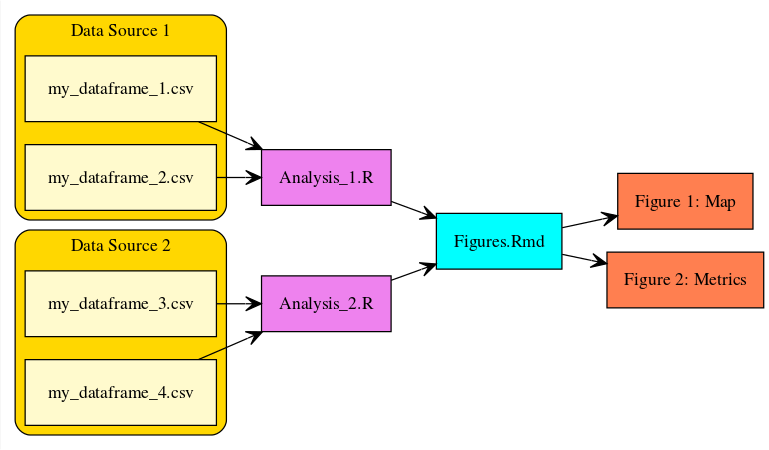

Define the relationship between the data and metadata.

dp <- insertRelationship(dp, subjectID = emlId, objectIDs = dataId)

You can also add scripts and derived data files to the data package.

Create a Resource Description Framework (RDF) of the relationships between data and metadata.

serializationId <- paste("resourceMap", UUIDgenerate(), sep = "")
filePath <- file.path(sprintf("%s/%s.rdf", tempdir(), serializationId))
status <- serializePackage(dp, filePath, id=serializationId, resolveURI = "")

Save the data package to a file, using the BagIt packaging format.

Right now this creates a zipped file in the tmp directory. We’ll have to move the file out of the temp directory after it is created. Hopefully this will be changed soon!

dp_bagit <- serializeToBagIt(dp)
file.copy(dp_bagit, "storm_project/Storm_dp.zip")

Picking a repository

There are many repositories out there, and it can seem overwhelming picking a suitable one for your data.

Repositories can be subject or domain specific. re3data lists repositories by subject and can help you pick an appropriate repository for your data.

DataONE is a federation of repositories housing many different types of data. Some of these repositories include Knowledge Network for Biocomplexity (KNB), Environmental Data Initiative (EDI), Dryad, USGS Science Data Catalog

For qualitative data, there are a few dedicated repositories: QDR, Data-PASS

Though a bit different, Zenodo facilitates publishing (with a DOI) and archiving all research outputs from all research fields.

This can be used to publish releases of your code that lives in a GitHub repository. However, since GitHub is not designed for data storage and is not a persistent repository, this is not a recommended way to store or publish data.

Uploading to a repository

Uploading requirements can vary by repository and type of data. The minimum you usually need is basic metadata, and a data file.

If you have a small number of files, using a repository GUI will usually be simpler. For large numbers of files, automating uploads from R will save time. And it’s reproducible!

Data Upload Example using DataONE:

If you choose to upload your data package to a repository in the DataONE federation, the following example might be useful.

You’ll need to do two basic steps:

1) Get authentication token for DataONE (follow steps here)

2) Upload your data package using R (from vignette for dataone)

R Package What does it do?
dataone uploads data package to repository

Tokens:

Different environments in DataONE take different authentication tokens. See below for description of environments.
To get a token for the staging envrionment go here https://dev.nceas.ucsb.edu.
To get a token for production environment go here https://search.dataone.org.
Then do the following:

Set your token now

Paste your token in R console, as in the above instructions.

Set access rules

> library(dataone)
> library(curl)
> library(redland)
>
> dpAccessRules <- data.frame(subject="http://orcid.org/0000-0003-0847-9100",
+                             permission="changePermission")

This gives this particular orcid (person) permission to read, write, and change permissions for others for this package

> dpAccessRules2 <- data.frame(subject = c("http://orcid.org/0000-0003-0847-9100",
+                                          "http://orcid.org/0000-0000-0000-0001"),
+                              permission = c("changePermission", "read")
+                              )

NOTE: When you upload the package, you also need to set public = FALSE if you don’t want your package public yet.

Upload data package

The first argument here is the environment - “PROD” is production where you publish your data. “STAGING” can be used if you’re not yet sure you have everything in order and want to test uploading your data package. NOTE: “PROD” and “STAGING” require different tokens. See above steps to get the correct token.

The second argument is the repository specification. If you don’t know your repository specs, look it up in this table of member node IDs: (data/Nodes.csv)

> read.csv("data/Nodes.csv")

First set the environment and repository you’ll upload to:

> d1c <- D1Client("STAGING2", "urn:node:mnTestKNB")

Now do the actual uploading of your data package:

> packageId <- uploadDataPackage(d1c, dp, public = TRUE, accessRules = dpAccessRules,
+                                quiet = FALSE)

Citation

Getting a Digital Object Identifier (DOI) for your data package can make it easier for others to find and cite your data.

You can assign a DOI to the metadata file for your data package using:

First specify the environment and repository.

> cn <- CNode("PROD")
> mn <- getMNode(cn, "urn:node:DRYAD")
>
> doi <- generateIdentifier(mn, "DOI")

Now overwrite the previous metadata file with the new DOI identified metadata file

> mdObj <- new("DataObject", id = doi, format = "eml://ecoinformatics.org/eml-2.1.1",
+              file = emlFile)

Top of Section

Versioning Data

How do you know you’re using the same version of a data file as your collaborator?

Potential ways forward:

  1. Upload successive versions of the data to a repo with versioning, but keep it private until you’ve reached the final version or the end of the project. (see below)

  2. Google Sheets has some support for viewing the edit history of cells, added or deleted columns and rows, changed formatting, etc.

Updating your data package on the repository

To take advantage of the versioning of data built into many repositories, you can update the data package (replace files with new versions).

Please see the vignettes for dataone , section on “Replace an object with a newer version”.

Provenance

Prov is tracking the inputs and outputs generated by the research process, from raw data to publication(s).
It is often very helpful to create a diagram that shows the relationships between files.

A couple examples include:

Adding provenance to your data package

Provenance can be added to a data package using datapack and the function in the example code below. But see the vignette or the function documentation for more details.

Example code for provenance:

> dp <- describeWorkflow(dp, sources = doIn, program = progObj, derivations = doOut)

Closing thoughts

Starting to document your data at the beginning of your project will save you time and headache at the end of your project.

Integrating data documentation and publication into your research workflow will increase collaboration efficiency, reproducibility, and impact in the science community.

Top of Section

Exercises

Exercise 1

ORCiDs identify you (like a DOI identifies a paper) and link you to your publications and research products.
If you don’t have an ORCiD, register and obtain your number at https://orcid.org.

Exercise 2

The DataONE federation of repositories requires a unique authentication token for you to upload a data package.
Follow the steps here to obtain your token.

Exercise 3

There are many repositories you could upload your data package to within the DataONE federation.
Pick a repository from the list (located at data/Nodes.csv) and upload a test data package to the “STAGING” environment.

Note: Staging environments require a different authentication token than production environments. See the section on token in the publishing part of the lesson for more details.

Use the example code from the lesson.

Exercise 4

DOIs (digital object identifiers) are almost univerally used to identify papers. They also improve citation and discoverability for your published data packages.
Get a DOI for your published data package.

Use the example code from the lesson.

Exercise 5

If you’re using a data repository to manage versions of your derived data files, you will likely want to update your data file at some point. Use the vignette from the dataone package to “replace an older version of your derived data” with a newer version.

Exercise 6

Provenance is an important description of how your data have been obtained, cleaned, processed, and analyzed. It is being incorporated into descriptions of data packages in some repositories.
Use the describeWorkflow() function from the datapack package to add provenance to your test data package.

Use the example code from the lesson.

Top of Section

If you need to catch-up before a section of code will work, just squish it's 🍅 to copy code above it into your clipboard. Then paste into your interpreter's console, run, and you'll be ready to start in on that section. Code copied by both 🍅 and 📋 will also appear below, where you can edit first, and then copy, paste, and run again.

# Nothing here yet!
